SMAF & SMBF ultra-thin diodes
Release Date：2020-07-18
SMAF & SMBF can completely replace all the specifications of the existing SMA& SMB without changing the circuit design and PCB board.
New ultra-thin series products SMAF & SMBF package, on the basis of continuous management and accumulation, we have carried out extensive reforms in the patch aspect. Invest a lot of capital and technology research and development, upgrade traditional products, and realize the real reform of ultra-thin SMAF & SMBF.
The ultra-thin size of the SMAF package can meet the higher requirements of today's rapid technological development of circuit design, and the optimized design of the electrode provides better heat dissipation performance. Using planar technology chips (GPP technology chips and Schottky technology chips), the high temperature reliability of the chips is greatly improved. The thickness is 50% lower than the existing SMA (from 2.2mm to 1.0mm) and thinner than SOP-8 and other ICs. Even if it is mounted on the back of the PCB, it will not be affected at all when the device is cut. The pins are designed with extended pins. The pins are flat on the bottom of the device, which is not easy to deform and damage to avoid the virtual soldering phenomenon caused by the unevenness of the two feet like the SMA flattening process.
SMAF & SMBF chip package covers all types of planar diodes. The size ranges from 24MIL to 70MIL, laying the foundation for the next step of miniaturization and application of ultra-low forward VF series diodes.

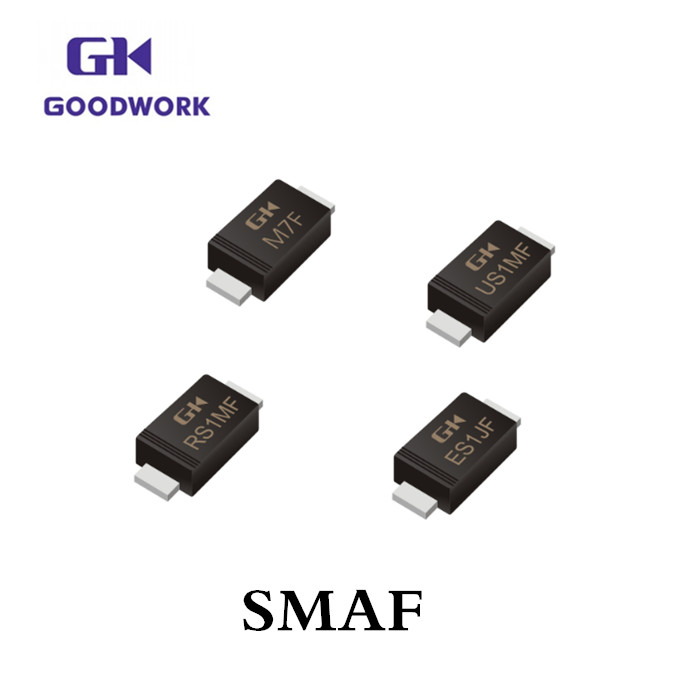

Figure 1: SMAF package model

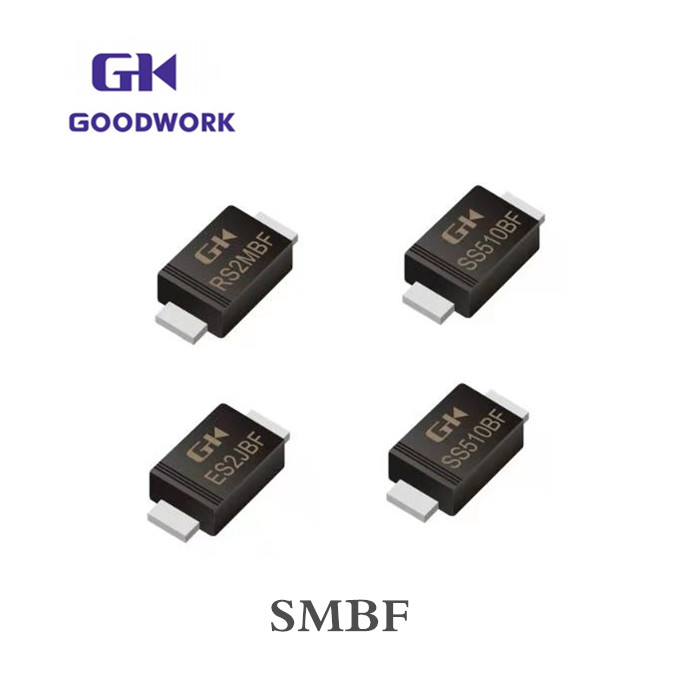

Figure 2: SMBF package model
SMAF & SMBF packageable chip specifications
Chip type:
1. GPP ordinary rectifier bridge diode chip
2. GPP fast rectifier diode chip
3. GPP high efficiency rectifier diode chip
4. GPP ultra-fast rectifier diode chip
5. Schottky barrier rectifier diode chip
6. GPP-TVS diode chip
7. Unidirectional, triac diode chip
8. Ultra-low forward series diode chip
9. Other series of planar diode chips
Chip size:
SMAF package: 24, 28, 32, 35, 40, 46, 50...70MIL
SMBF package: 24…50, 60, 68, 70, 80…95ML
SMAF & SMBF advantages: good heat dissipation, low thermal resistance, high junction temperature, high surge resistance design, the lead is flat to the bottom of the device, the heat dissipation path is short, the heat dissipation characteristics of the device are improved, and the technology breakthrough of small size and high power is achieved .
High cost performance: After several years of technology research and development and gradually realized products are put into mass production, the cost has been close to SMA ordinary products, which can achieve high-quality, cost-effective industry breakthroughs.
